Models

One Laser Spray, different avatars for farmers' varying needs and preferences

Driptech is a pioneer and global leader in Spray Irrigation technology . Through continuous research, development, and valuable feedback from farmers, the company has created new unique models of Laser Spray (Rain Pipe / Rain Hose) systems to meet the requirement of varied agricultural profile and farmers’ preferences. We are pleased to present our latest leading model. Please look forward to more to come in the coming years.

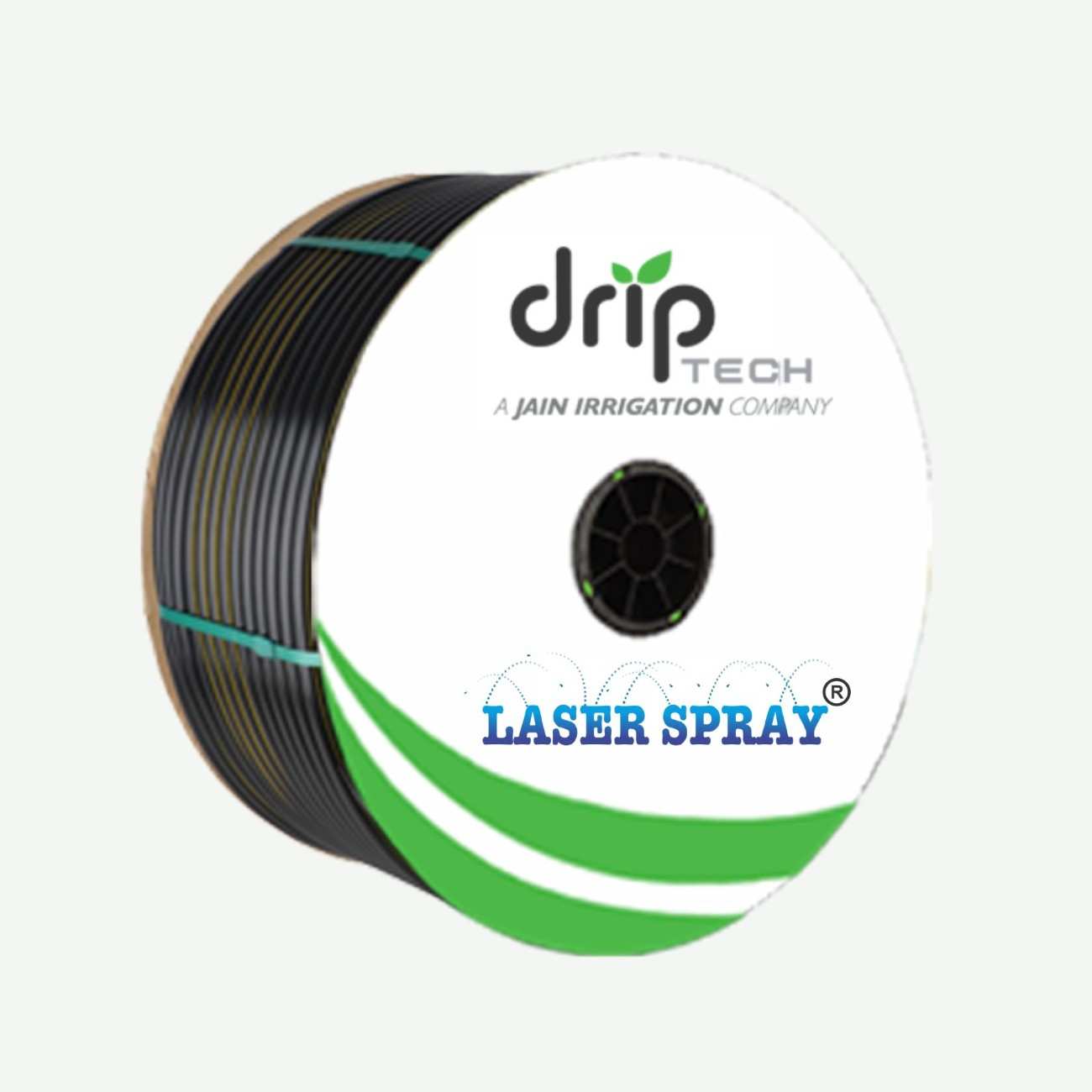

Rain Pipe Bundel

Laser Spray 20 MM

For More Details, Please

Rain Pipe Bundel

Laser Spray Gold - 20 MM

For More Details, Please

Rain Pipe Bundel

Laser Spray 32 MM

For More Details, Please

Rain Pipe Bundel

Laser Spray Gold - 32 MM

For More Details, Please

Rain Pipe Bundel

Laser Spray 40 MM

For More Details, Please

Rain Pipe Bundel

Laser Spray Marathon 40 MM

For More Details, Please

Rain Pipe Bundel

Laser Spray Jumbo - 63 MM

For More Details, Please

Sprcifications at a glance

Laser Spray Specification
Laser Spray Models Wall Thickness Roll Length Water Discharge Max Permissible Running Length* Wetting Distance* Operating Pressure Qty Required for 1 Acre
Laser Spray 20 MM 0.2 MM 200/700 mtr 45 LPH/mtr 50 mtr 3 mtr 0.7 kg/cm² 1400 Mtr
Laser Spray Gold - 20 MM 0.4 MM 100 mtr 45 LPH/mtr 50 mtr 3 mtr 0.7 kg/cm² 1400 Mtr
Laser Spray 32 MM 0.3 MM 100/600 mtr 135 LPH/mtr 50 mtr 7 mtr 0.7 kg/cm² 600 Mtr
Laser Spray Gold - 32 MM 0.4 MM 100 mtr 135 LPH/mtr 50 mtr 7 mtr 0.7 kg/cm² 600 Mtr
Laser Spray 40 MM 0.3 MM 100/500 mtr 135 LPH/mtr 60 mtr 7 mtr 0.7 kg/cm² 600 Mtr
Laser Spray Marathon 40 MM 0.3 MM 100/500 mtr 70 LPH/mtr 100 mtr 6 mtr 0.7 kg/cm² 700 Mtr
Laser Spray 63 MM 0.3 MM 100 mtr 205 LPH/mtr 100 mtr 7 mtr 0.7 kg/cm² 100 Mtr

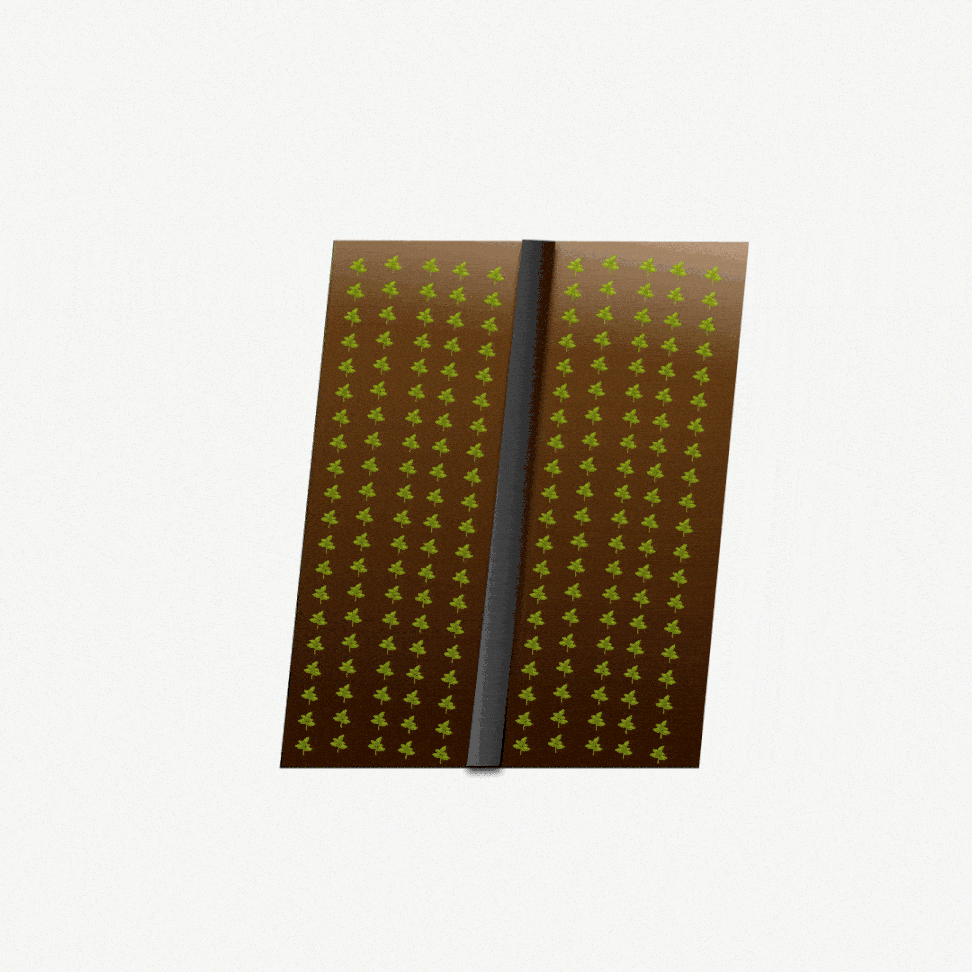

* Please see the image below for explanation.

Pi7 GIF CMP 5

How to choose the models

Factors to consider when choosing a Laser Spray model

While all Laser Spray models (Rain Pipe / Rain Hose) can be used for most agricultural applications, certain models are better suited for specific conditions.

  • For large or long plots

 Laser Spray Marathon has distinct advantage for large or long plots because of its high Maximum Permissible Running Length. This model gives uniform water discharge over longer distance, so it can be laid over longer distance at a stretch. This saves main line, sub-main lines and fittings making it more cost effective than other models. Larger the plot more is the saving. For detailed explanation of this, please see the page on Laser Spray Marathon 40 mm.

  • For reduced valve operation or longer interval between the valve operations:

If you want to reduce the number of valves to be operated or they are to be operated in longer interval then, opt for Laser Spray Marathon because it covers larger area with slower irrigation rate.

  • For higher discharge /quick irrigation

Choose Laser Spray 32 mm / 40 mm because they give higher discharge per meter length of the spray pipe.

  • For irrigation on beds / compact area / inter cultivation / crop cooling / greenhouse.

Laser Spray 20 mm has advantage over other models for the above applications because it has narrower wetting distance.
