Rain Pipe| Rain Hose| Laser Spray Models

Complete Guide to All Driptech Laser Spray Models

Rain Pipe / Rain Hose (Laser Spray) irrigation is one of the most efficient and economical micro-irrigation systems for close-spacing crops. Different fields and crop requirements demand different Laser Spray models, and Driptech provides a full range of options from 20 mm to 63 mm.

Overview of Driptech Laser Spray Models

Driptech offers 7 Laser Spray (Rain Pipe / Rain Hose) models, each engineered with specific running lengths, wetting diameters, and wall thickness suitable for different farm sizes and irrigation needs.

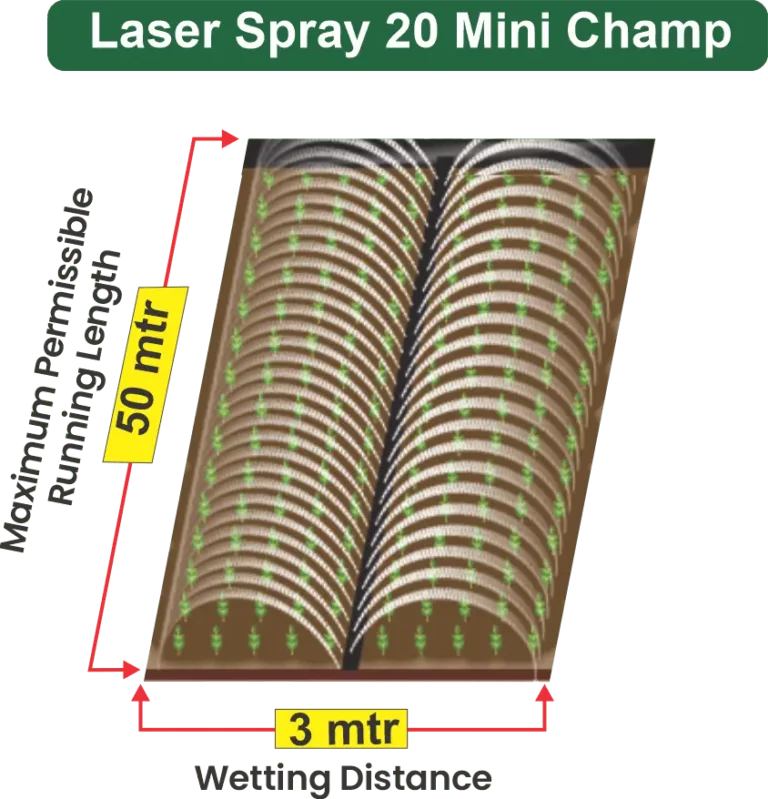

. Laser Spray -Mini Champ.

20mm Rain Pipe / Rain Hose/ Laser Spray Model

Specification

  1. Diameter- 20 mm
  2. Wall Thickness- 0.2 mm ( 8 Mil )
  3. Working Pressure – 0.7 kg/cm2
  4. Maximum Permissible Running Length- 50 meter
  5. Wetting Distance – 3 mtr
  6. Discharge – 45 LPH /Mtr
  7. Roll Length- 200 & 700 mtr

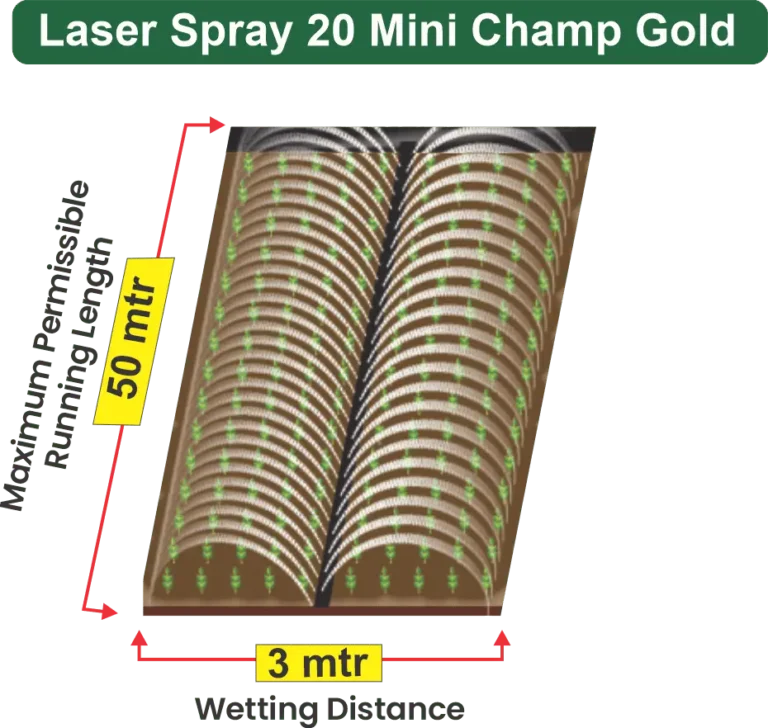

. Laser Spray -Mini Champ Gold.

Specification

  1. Diameter- 20 mm
  2. Wall Thickness- 0.4 mm
  3. Working Pressure – 0.7 kg/cm2
  4. Maximum Permissible Running Length- 50 meter
  5. Wetting Distance – 3 mtr
  6. Discharge – 42 LPH /mtr
  7. Roll Length- 100 mtr
20mm Rain pipe/ Rain Hose/ Laser spray - Mini Champ Gold

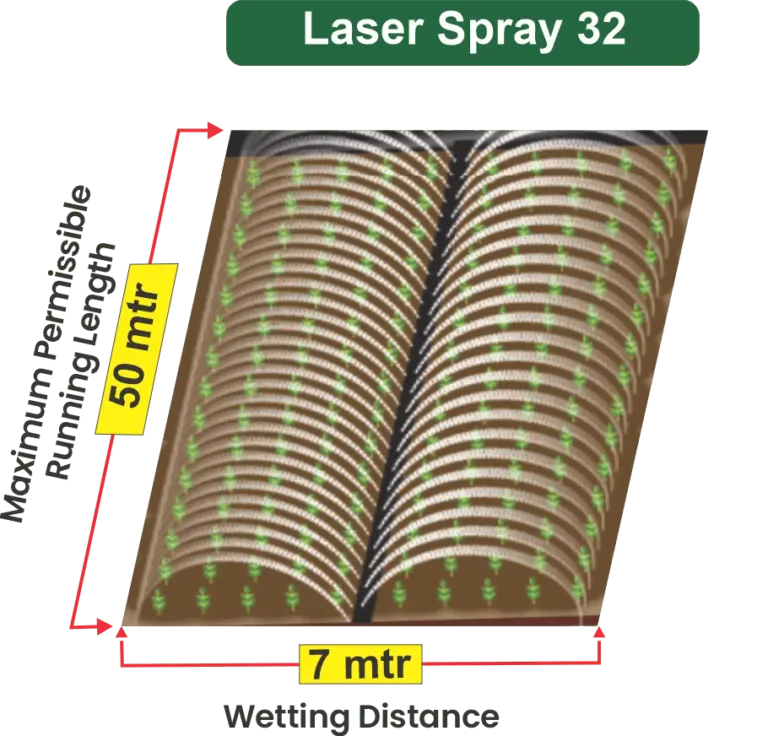

. Laser Spray - 32mm.

32mm Rain pipe/ Rain Hose/ Laser spray- Models

Specification

  1. Diameter- 32 mm
  2. Wall Thickness- 0.3 mm ( 12 Mil )
  3. Working Pressure – 0.7 kg/cm2
  4. Maximum Permissible Running Length- 50 meter
  5. Wetting Distance – 6 mtr
  6. Discharge – 135 LPH /mtr
  7. Roll Length- 100 & 600 mtr

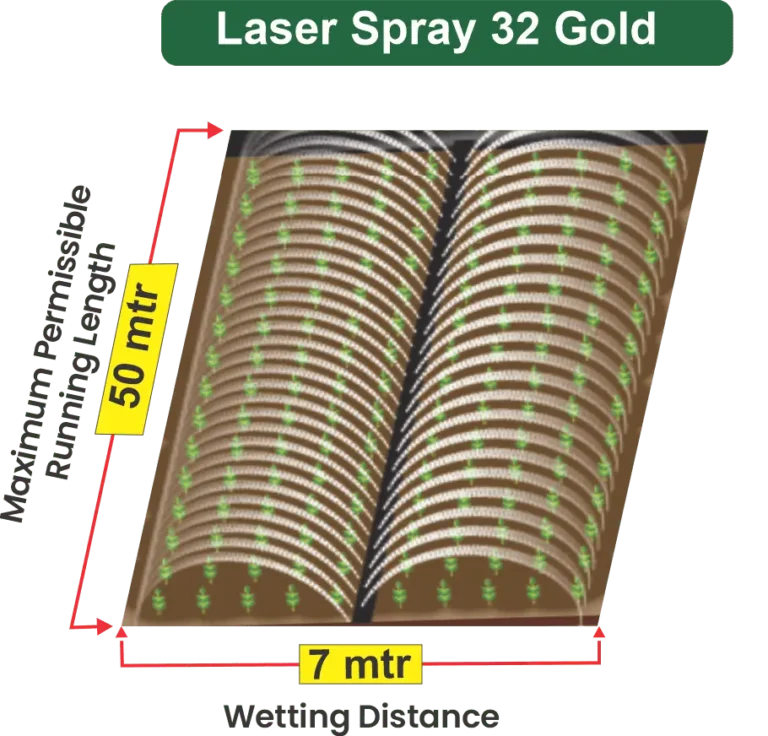

.Laser Spray- 32 Gold.

Specification

  1. Diameter- 32 mm
  2. Wall Thickness- 0.3 mm ( 12 Mil )
  3. Working Pressure – 0.7 kg/cm2
  4. Maximum Permissible Running Length- 50 meter
  5. Wetting Distance – 6 mtr
  6. Discharge – 135 LPH /mtr
  7. Roll Length- 100 mtr
32mm Rain pipe/ Rain Hose/ Laser spray - Gold Model Driptech

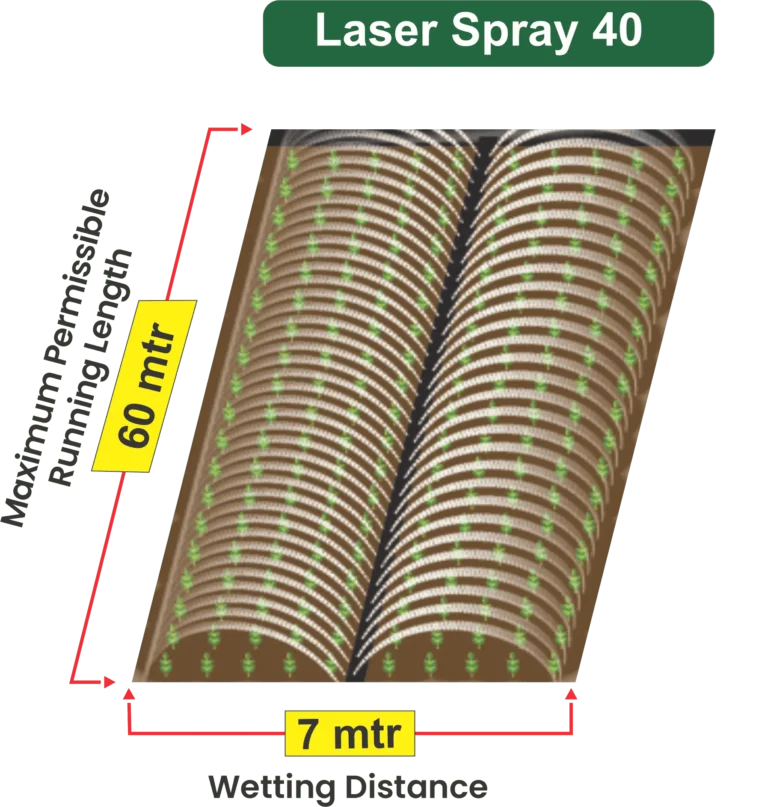

.Laser Spray- 40.

40mm Rain pipe/ Rain Hose/ Laser spray- Models

Specification

  1. Diameter- 40 mm
  2. Wall Thickness- 0.3 mm ( 12 Mil )
  3. Working Pressure – 0.7 kg/cm2
  4. Maximum Permissible Running Length- 60 meter
  5. Wetting Distance – 6 mtr
  6. Discharge – 135 LPH /mtr
  7. Roll Length- 100 & 500 mtr

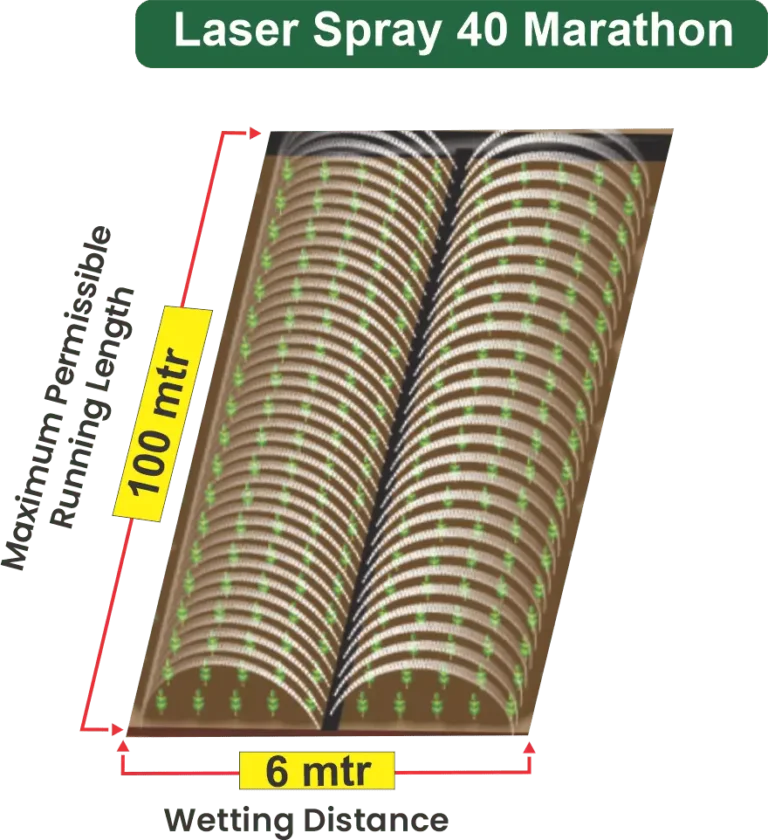

.Laser Spray- 40 Marathon.

Specification

  1. Diameter- 40 mm
  2. Wall Thickness- 0.3 mm ( 12 Mil )
  3. Working Pressure – 0.7 kg/cm2
  4. Maximum Permissible Running Length- 100 meter
  5. Wetting Distance – 6 mtr
  6. Discharge – 75 LPH /mtr
  7. Roll Length- 100 & 500 mtr
40mm Rain pipe/ Rain Hose/ Laser spray - Marathon Model

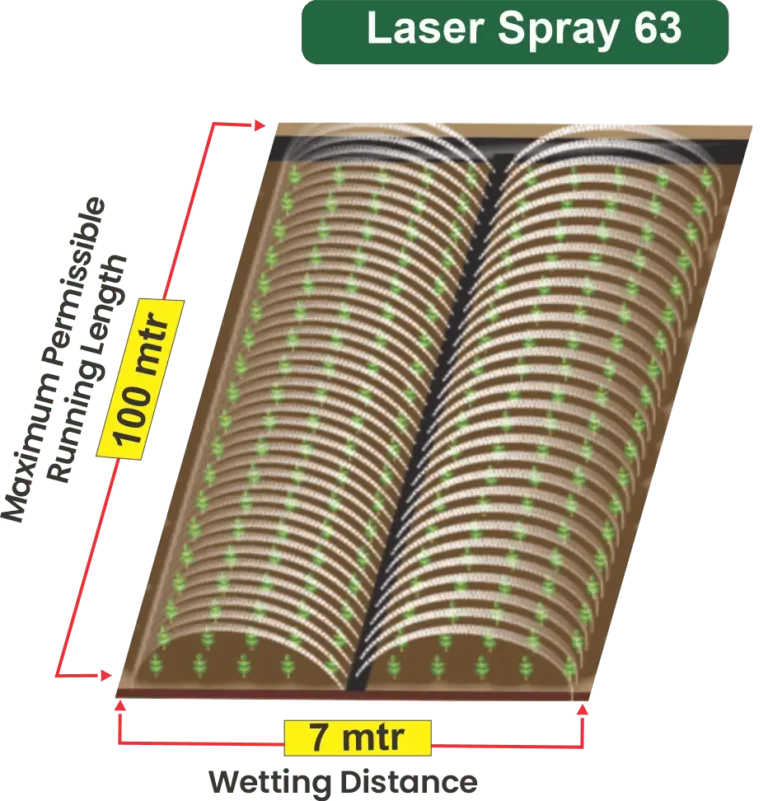

.Laser Spray- 63.

63mm Rain pipe/ Rain Hose/ Laser spray- Models

Specification

  1. Diameter- 63 mm
  2. Wall Thickness- 0.3 mm ( 12 Mil )
  3. Working Pressure – 0.5 kg/cm2
  4. Maximum Permissible Running Length- 100 meter
  5. Wetting Distance – 6 mtr
  6. Discharge – 235 LPH /mtr
  7. Roll Length- 100 mtr
