Laser Spray Models
Complete Guide to All Driptech Laser Spray Models
Driptech is a pioneer and global leader in Spray Irrigation technology . Through continuous research, development, and valuable feedback from farmers, the company has created new unique models of Laser Spray (Rain Pipe / Rain Hose) systems to meet the requirement of varied agricultural profile and farmers’ preferences. We are pleased to present our latest leading model. Please look forward to more to come in the coming years.

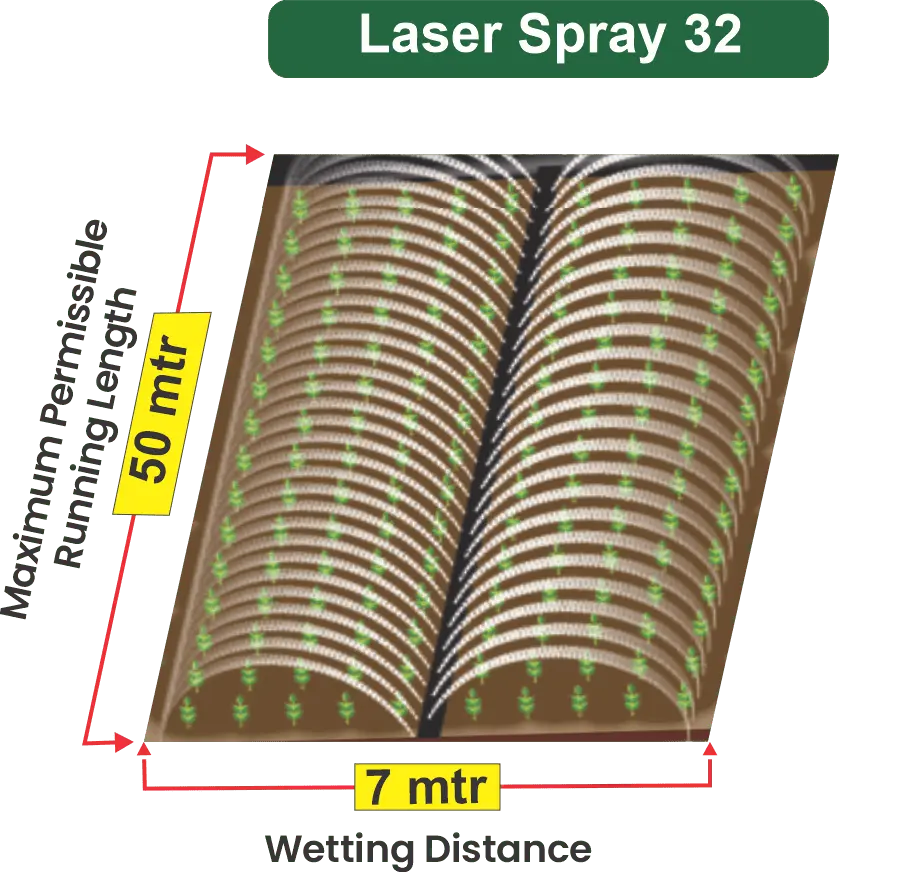

. Laser Spray -32.
Specification
Diameter- 32 mm
Wall Thickness- 0.3 mm ( 12 Mil )
Working Pressure – 0.7 kg/cm2
Maximum Permissible Running Length- 50 meter
Wetting Distance – 7 mtr
Discharge – 135 LPH /mtr
Roll Length- 100 & 600 mtr
- This model of Laser Spray (Rain Pipe / Rain Hose) is the most commonly used one.
- Its higher laying length (Maximum Permissible Running Length) and wider wetting distance allow it to irrigate a larger area with the same quantity of spray pipes,making it highly economical.
- Only 600 metres of spray pipe is required for one acre

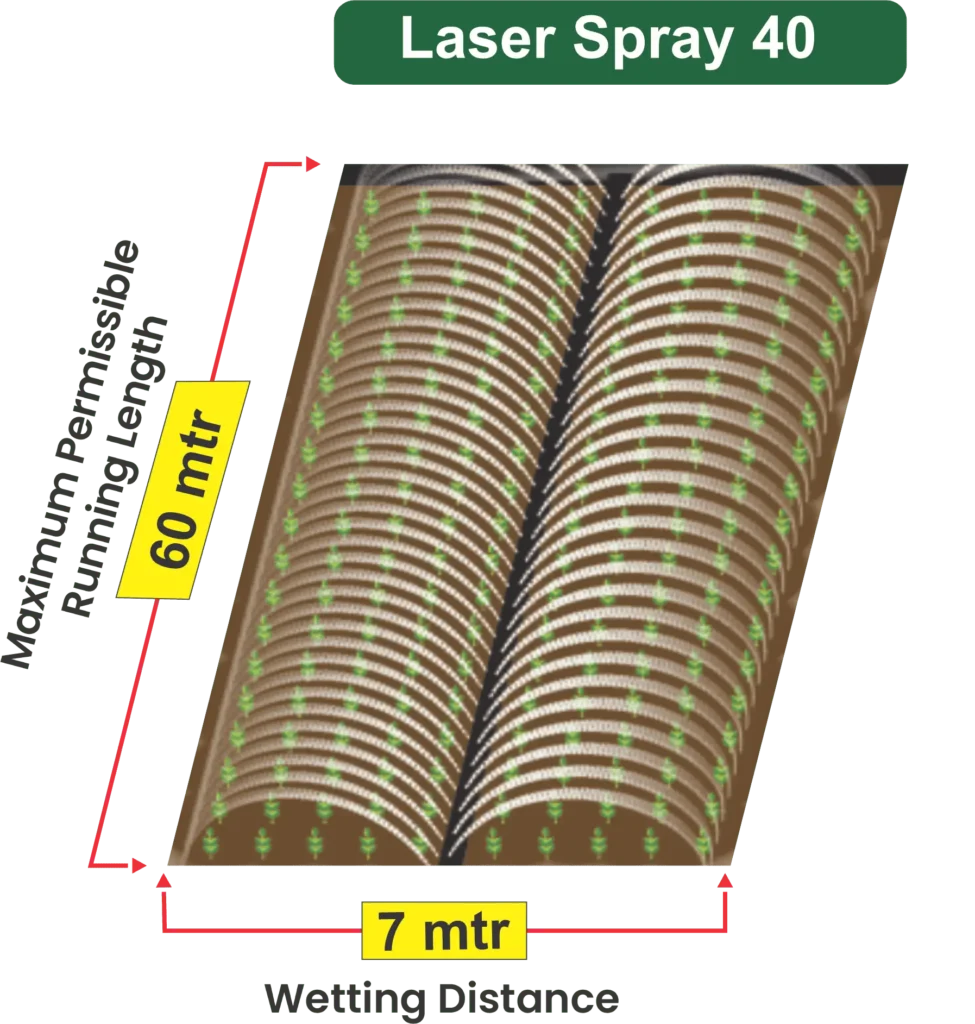

.Laser Spray 40.
Specification
Diameter- 40 mm
Wall Thickness- 0.3 mm ( 12 Mil )
Working Pressure – 0.7 kg/cm2
Maximum Permissible Running Length- 60 meter
Wetting Distance – 6 mtr
Discharge – 135 LPH /mtr
Roll Length- 100 & 500 mtr
- This model of Laser Spray ( (Rain Pipe / Rain Hose) ) is the most commonly used one.
- Its higher laying length (Maximum Permissible Running Length) and wider wetting distance allow it to irrigate a larger area with the same quantity of spray pipes,making it highly economical.
- Only 600 metres of spray pipe is required for one acre

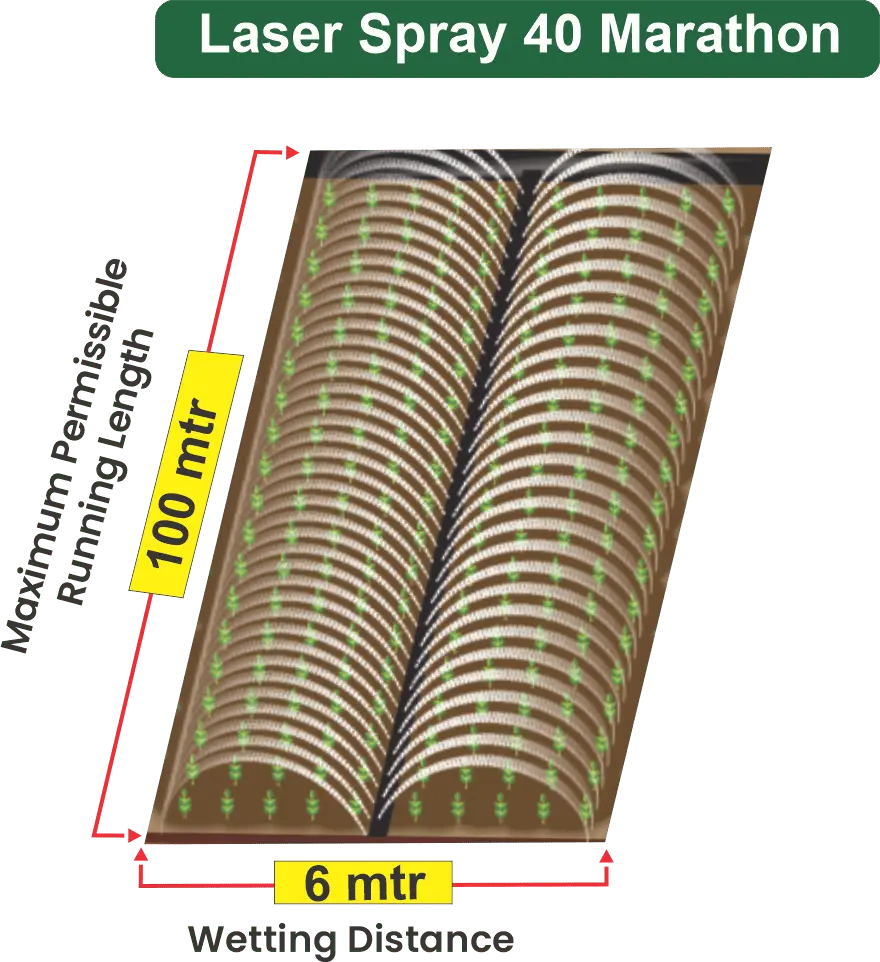

.Laser Spray 40 Marathon.
Specification
Diameter- 40 mm
Wall Thickness- 0.3 mm ( 12 Mil )
Working Pressure – 0.7 kg/cm2
Maximum Permissible Running Length- 100 meter
Wetting Distance – 6 mtr
Discharge – 75 LPH /mtr
Roll Length- 100 & 500 mtr
- This model of Laser Spray (Rain Pipe / Rain Hose) is specially developed for large or longish plots.
- It gives a Maximum Permissible Running Length of as much as 100 metres as against 50-60 mtr in case of the standard models, making it ideal for large and long plot.
- Its long running length results in savings on main pipe, submain pipe, and fittings.
- It also reduces labour required for installation and operation (due to the lesser number of valves to be operated).
- The larger the plot, the greater the savings achieved with this model.

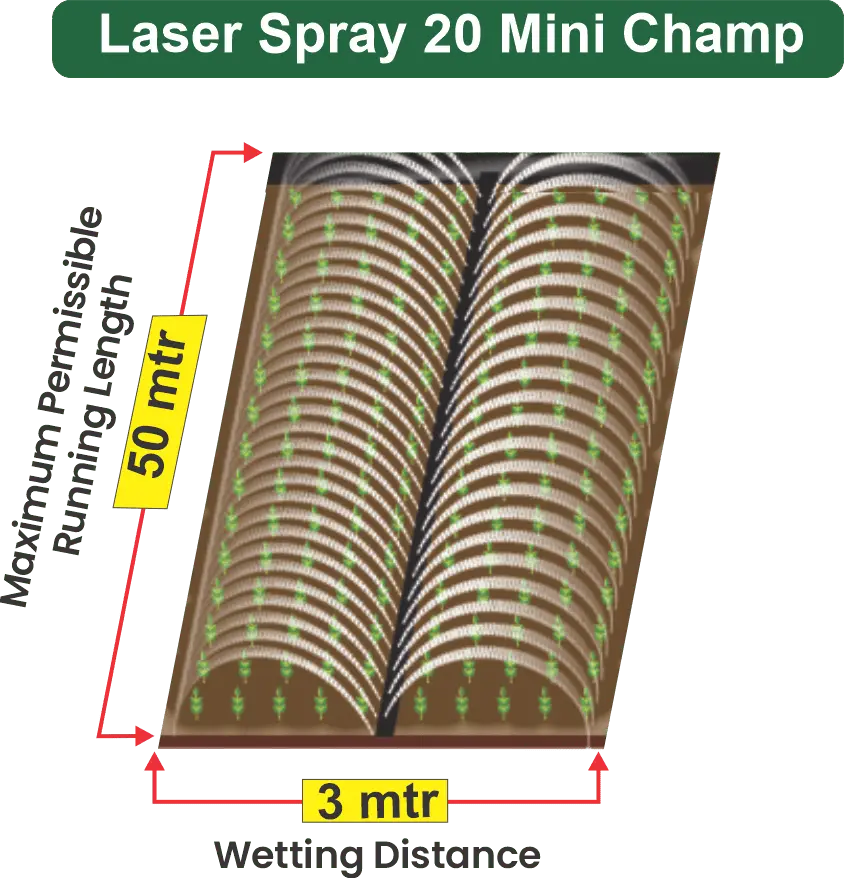

.Laser Spray 20 Mini Champ.
Specification
Diameter- 20 mm
Wall Thickness- 0.2 mm ( 8 Mil )
Working Pressure – 0.7 kg/cm2
Maximum Permissible Running Length- 50 meter
Wetting Distance – 3 mtr
Discharge – 45 LPH /Mtr
Roll Length- 200 & 700 mtr
- This model of Laser Spray ( Rain Pipe / Rain Hose) is of smaller diameter. But its Maximum Permissible Running Length is comparable to the standard models due to its unique design.
- Apart from regular fields, this model of Laser Spray ( Rain Pipe / Rain Hose) is ideal for irrigating the followings:
- Cultivation on bunds
- Inter cultivation
- Nurseries
- Green House
- Crop Cooling cum irrigation.

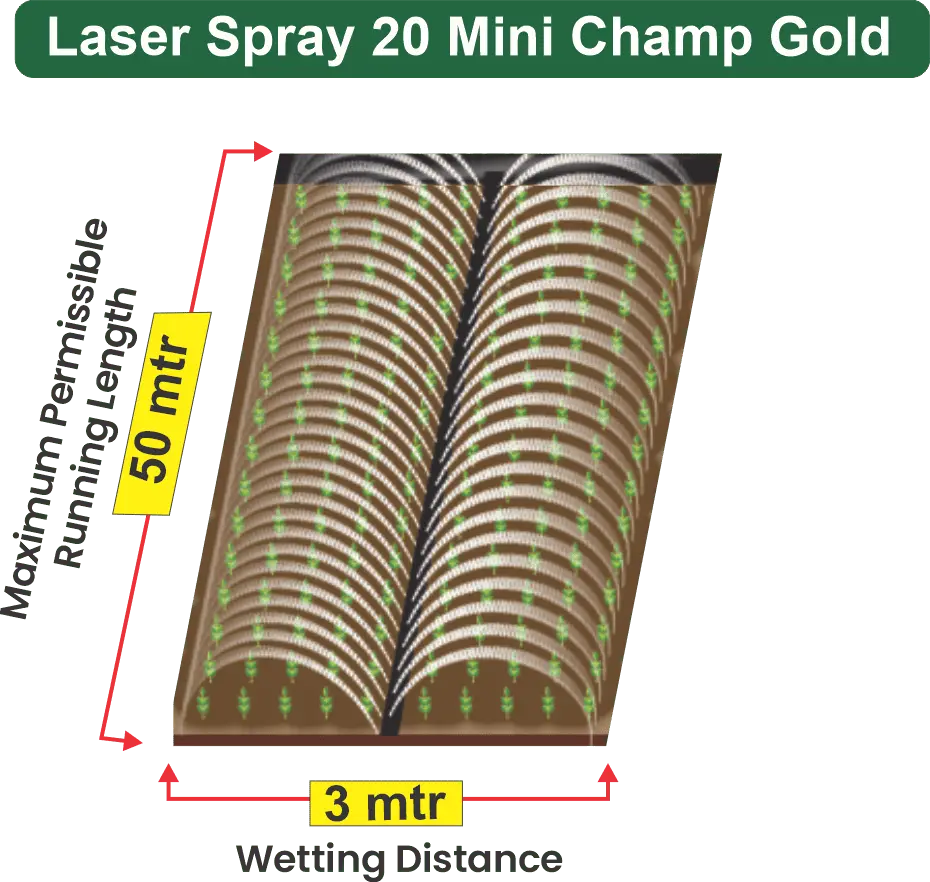

.Laser Spray 20 Gold.
Specification
Diameter- 20 mm
Wall Thickness- 0.4 mm
Working Pressure – 0.7 kg/cm2
Maximum Permissible Running Length- 50 meter
Wetting Distance – 3 mtr
Discharge – 45 LPH /Mtr
Roll Length- 200 & 700 mtr
- Higher wall thickness
- More robust
- More long lasting

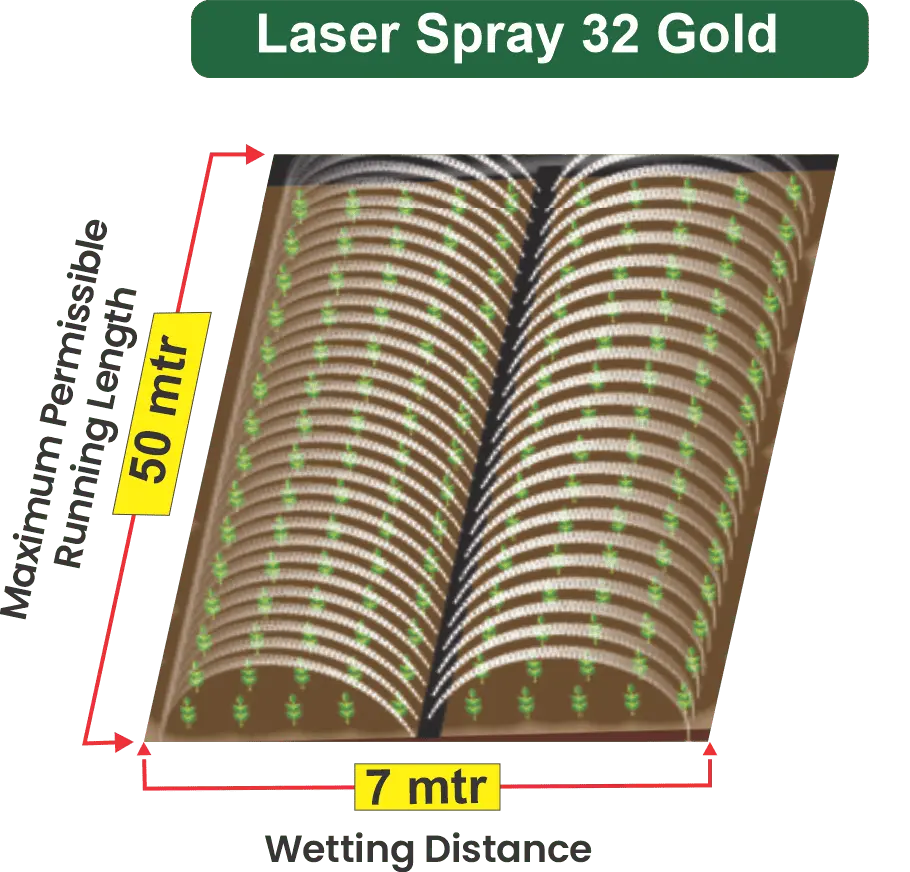

.Laser Spray 32 Gold.
Specification
Diameter- 32 mm
Wall Thickness- 0.4 mm
Working Pressure – 0.7 kg/cm2
Maximum Permissible Running Length- 50 meter
Wetting Distance – 6 mtr
Discharge – 135 LPH /mtr
Roll Length- 100 mtr
- Higher wall thickness
- More robust
- More long lasting

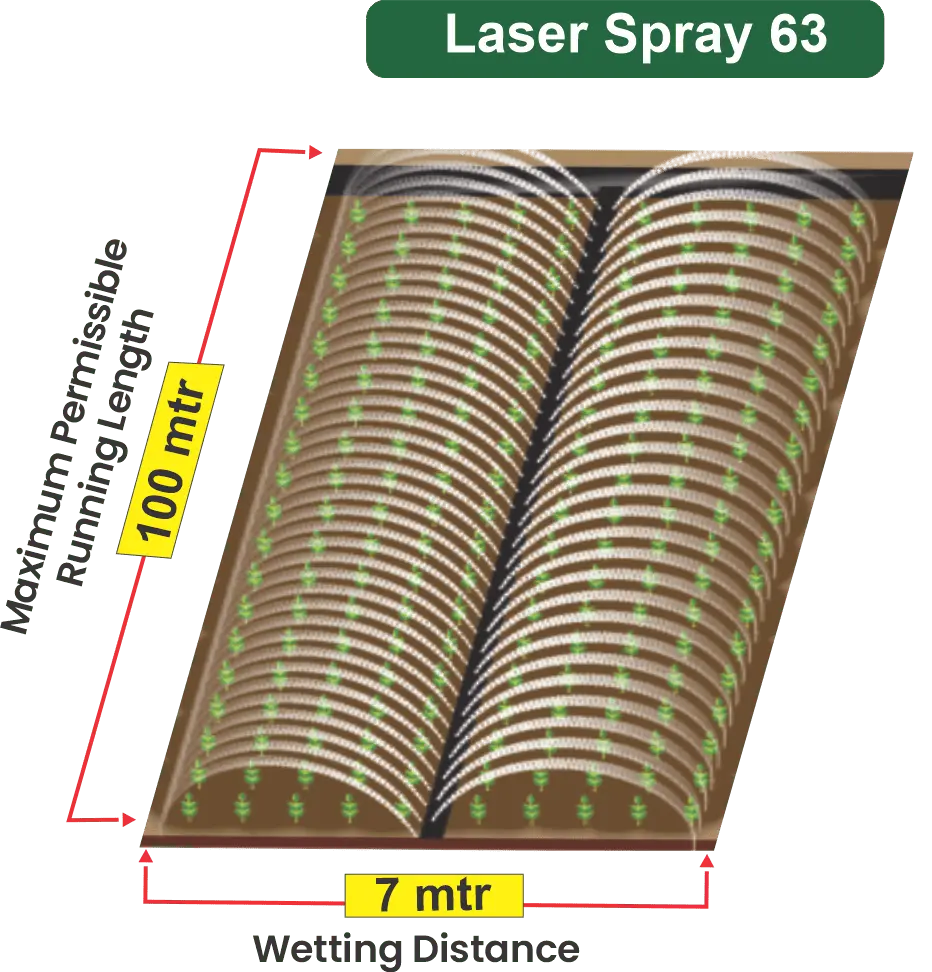

.Laser Spray 63 Jumbo.
Specification
Diameter- 63 mm
Wall Thickness- 0.3 mm ( 12 Mil )
Working Pressure – 0.5 kg/cm2
Maximum Permissible Running Length- 100 meter
Wetting Distance – 6 mtr
Discharge – 235 LPH /mtr
Roll Length- 100 mtr
- This model of Laser Spray ( Rain Pipe / Rain Hose) gives maximum discharge of water.
- It is normally used on shiftable basis i.e. the farmers use one or two lines of spray pipe for the whole plot by shifting them.
- This is highly economical and less labour intensive compared to sprinklers used on shiftable basis in the similar manner.
